Complex «Trofey–1»

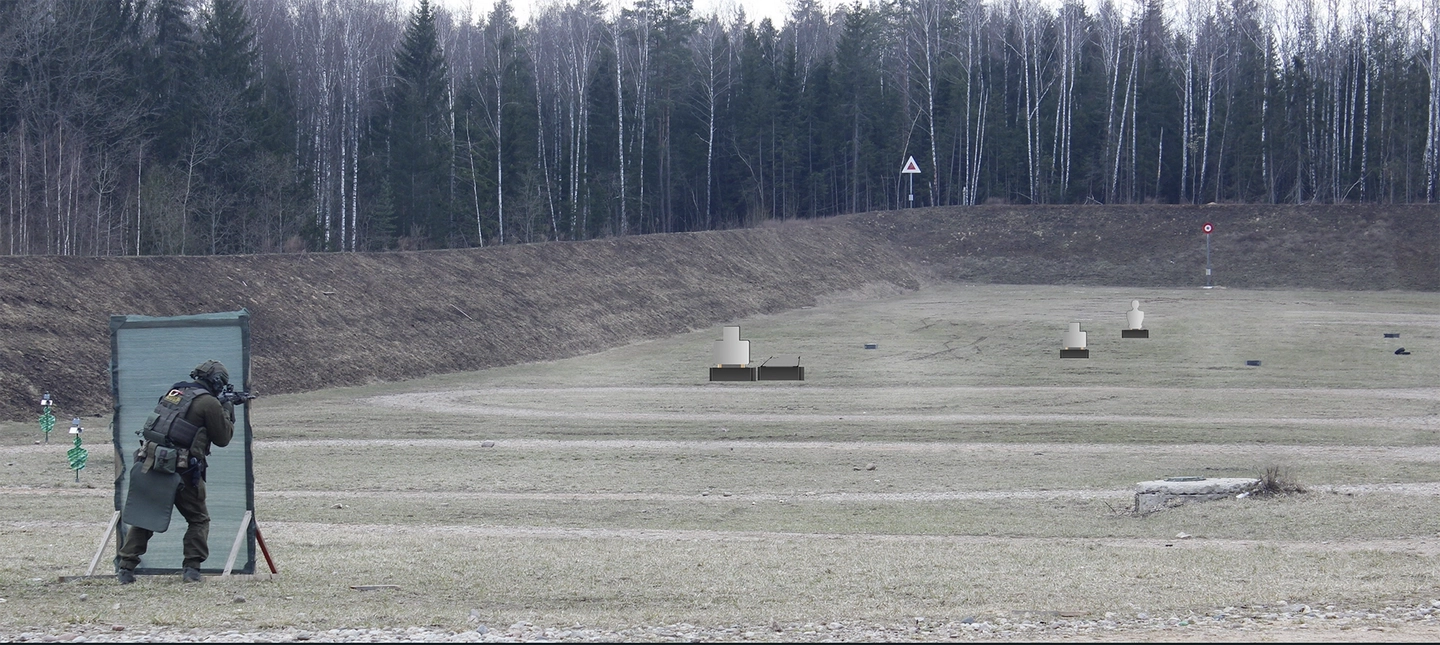

Complex «Trofey–1» is designed for outfitting shooting grounds and ranges with an automatic shooting result control system. Upon target engagement, the sensor registers the hit, the target mechanism lowers the target, and data is immediately transmitted to the control unit or operator's tablet via a wireless radio channel. Target control and exercise launch are carried out remotely from the firing line. The system supports six programmed scenarios — from controlling individual targets in manual mode to automated tactical exercises with group targets, sequential designation, and duel mode. Shooting results can be transmitted to a tablet or personal computer and saved for subsequent analysis. The system design is rated for field operation: all unit housings feature an IP65 protection rating, and battery capacity ensures continuous operation for a full training day. Upon customer request, the system can be equipped with armored target mechanism protection and thermal target support.

Complex «Trofey–1» applications

• Firearms training — objective assessment of shooting results with various weapon types at distances up to 1,500 m, without interrupting sessions or personnel advancing to the targets.
• Shooting scenario simulation — practicing engagement of single and group targets, rapid fire, and duel situations in conditions approximating real-world scenarios.
• Result monitoring and logging — data transmission to a tablet and external device for subsequent evaluation.

Complex «Trofey–1» advantages

• Fully automatic operation — the system registers hits, lowers engaged targets, and raises them on operator command. The entire process is controlled from a single point, with no auxiliary personnel at target positions.
• Operates in any conditions — protected housings, cold-resistant batteries, and a stable radio signal ensure stable outdoor operation year-round, with no infrastructure dependency.
• Fully wireless design — no cables between targets and the control unit: control and data transmission are carried out via radio channel, enabling system deployment on any terrain in minimal time and without laying utilities.

• Operating range: up to 1,500 m
• Number of target mechanisms: up to 10 pcs
• Operation time without recharging: at least 12 hours
• Operating temperature: −20 to +40 °C
• Enclosure protection rating: IP65
• Target mechanism weight: no more than 21 kg
• Control unit (RCU) weight: no more than 0.3 kg

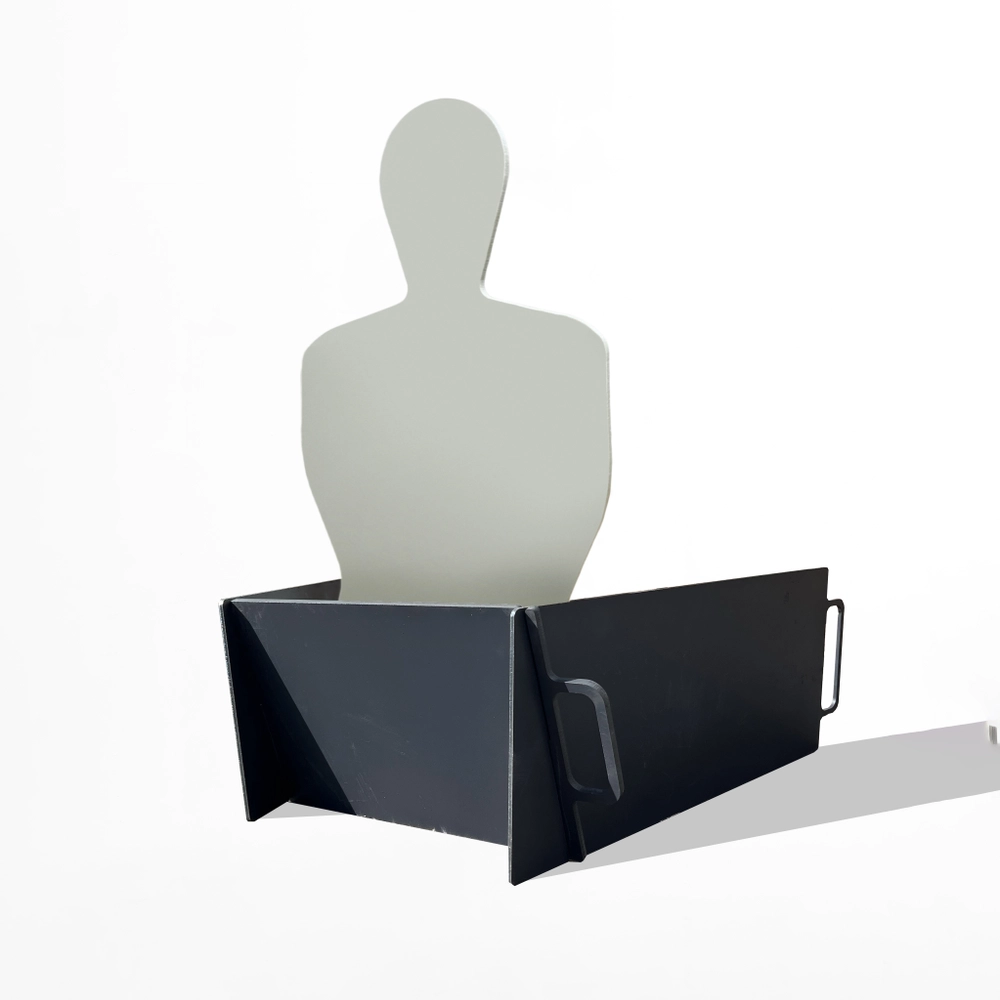

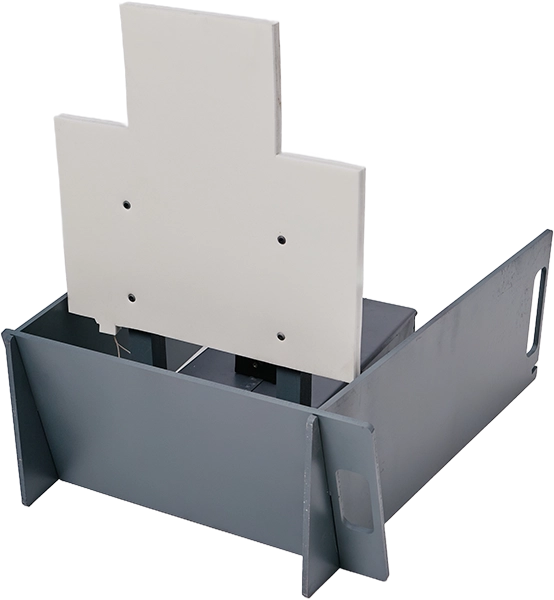

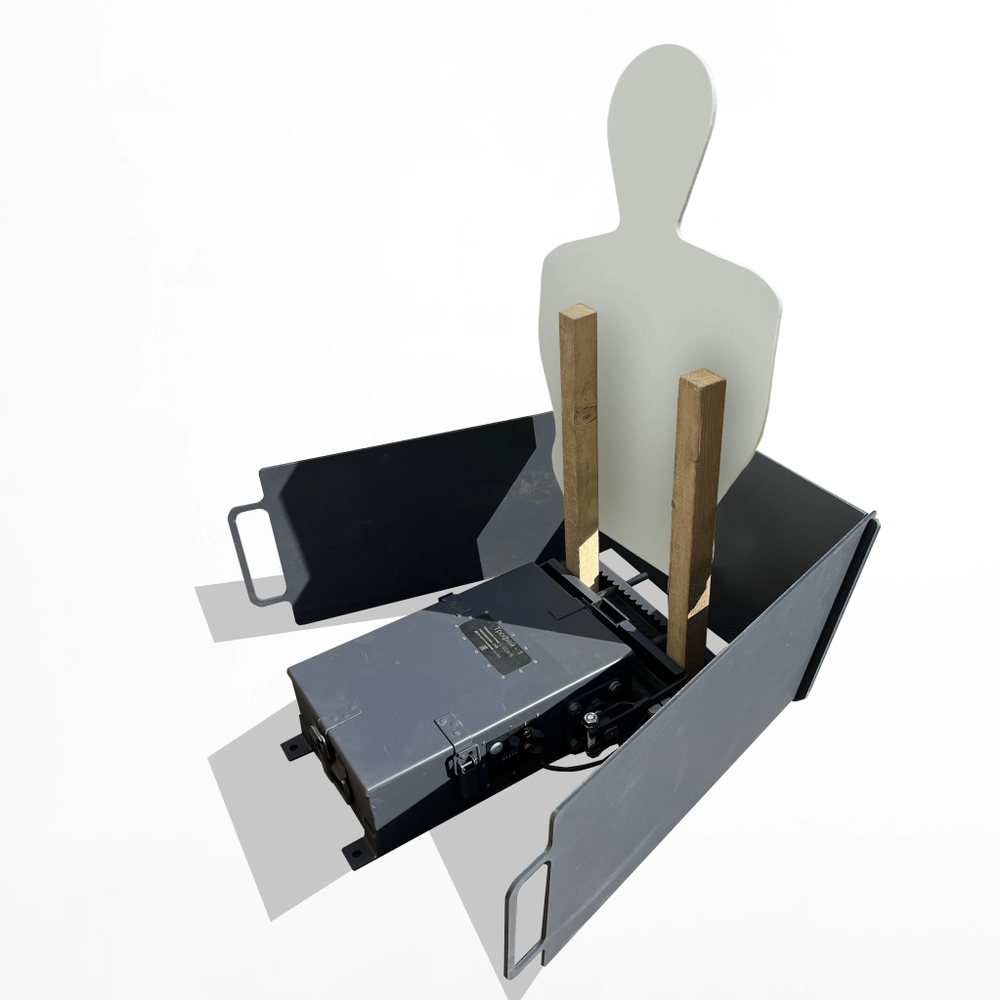

1. Radio-Controlled Target Mechanism — up to 10 pcs
2. Remote Control Unit — 1 pc
3. Light Programmable Module with IR — up to 10 pcs
4. Vibration Programmable Module — up to 10 pcs
5. Tablet* — 1 pc
6. Converter* — 1 pc

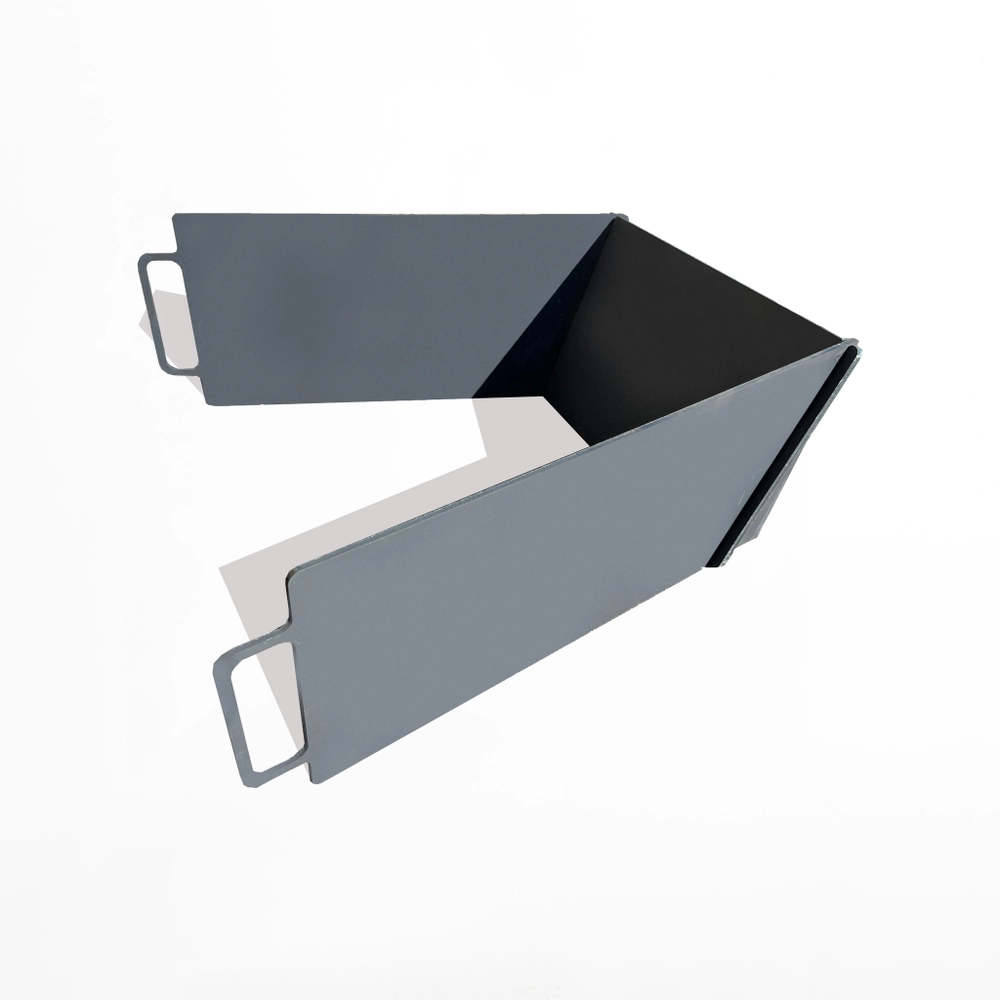

7. Armor Protection Kit* — up to 10 pcs
8. Specialty Target — up to 10 pcs
9. Charger — 1 set
10. Storage and Transport Case — 2 pcs
11. Certificate and User Manual — 1 pc

* Supplied upon customer request
