Complex «Trofey–2» K

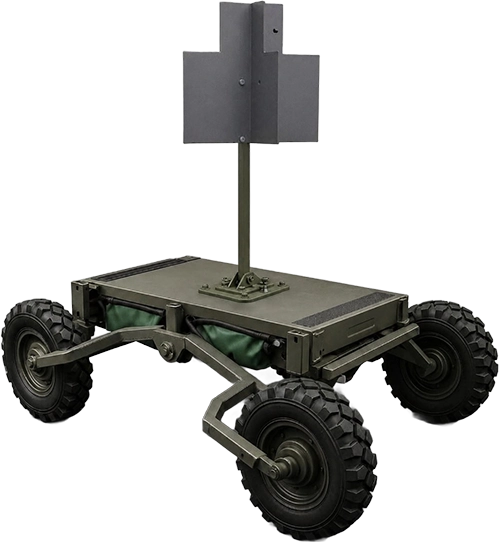

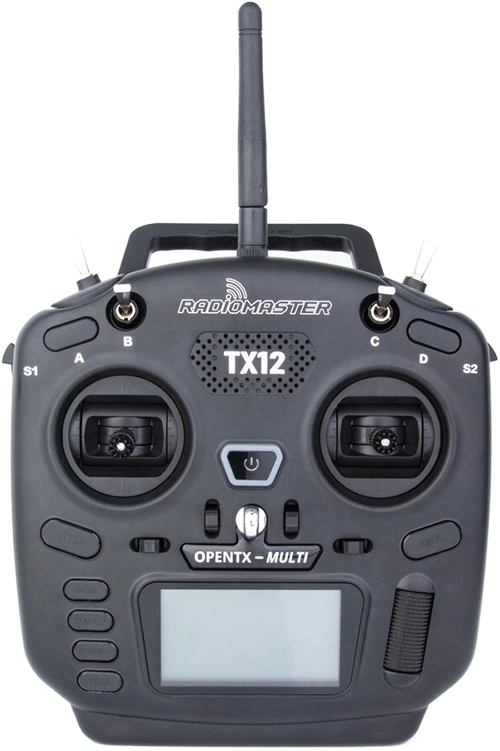

Complex «Trofey–2» K is designed for creating realistic firearms training conditions. At its core is a radio-controlled wheeled platform (RCM-W) that traverses terrain at speeds from 7 to 15 km/h. Platform control is carried out via an external control device over a wireless channel. Control range can reach up to 10,000 m when using external antennas. The system also supports operation in "Wave Network" mode with no range limitations. The design provides an IP65 protection rating (dust and moisture protection), enabling field operation at temperatures from −20 to +40 °C. A single battery charge provides at least 50 km of travel and at least 4.5 hours of autonomous operation.

Complex «Trofey–2» K applications

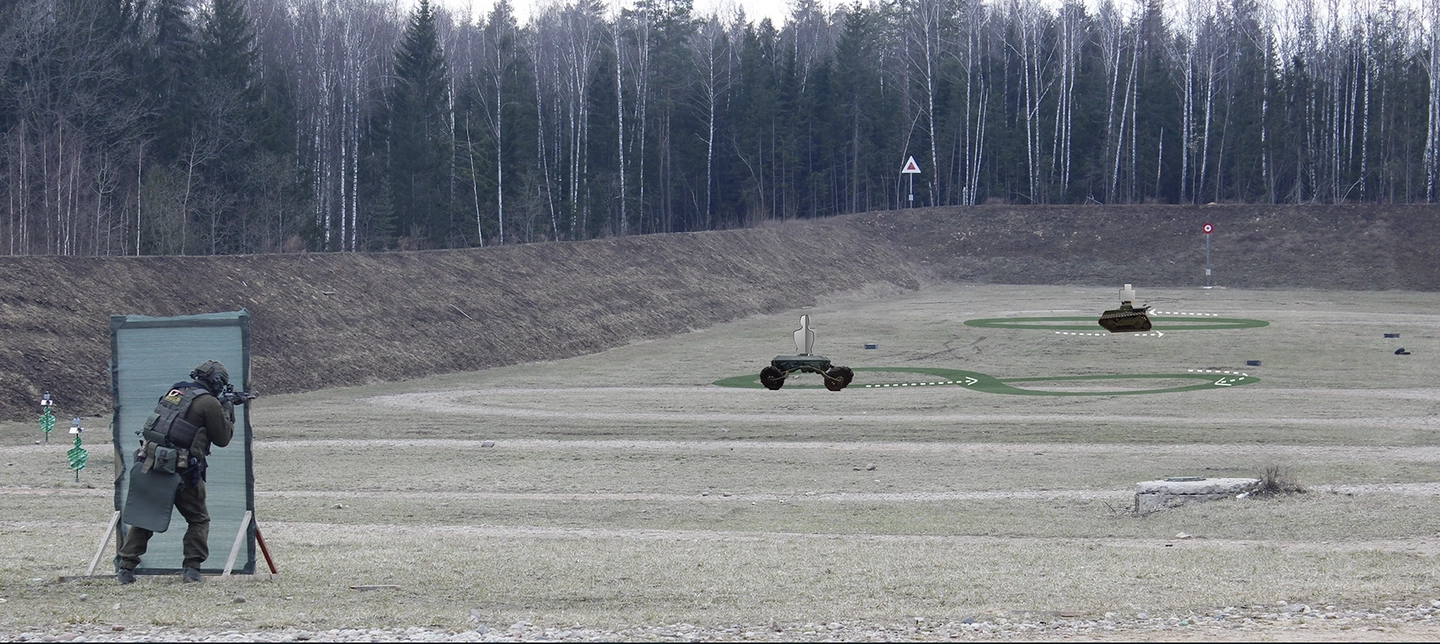

• Shooter firearms training. The system is used at training grounds and ranges for practicing moving target engagement skills in conditions maximally approximating real-world scenarios.
• Competition conduct. The system ensures objective hit registration and automatic score calculation, making it suitable for use in practical shooting competitions and related disciplines.
• Tactical scenario simulation. External control enables modeling of any shooting exercises.

Complex «Trofey–2» K advantages

• Extended travel range and long autonomous operation. A single battery charge provides at least 50 km of travel and 4.5 hours of continuous operation, enabling extended training sessions without charging stops.
• Wide control range and high mobility. Base range — from 500 m, with external antenna — up to 3,000 m, with airborne repeater — up to 10,000 m. This ensures flexibility when using the system at facilities of various sizes. Capability to move in all directions.
• High protection and reliability in field conditions. The IP65-rated enclosure ensures resistance to dust and moisture. The operating temperature range of −20 to +40 °C enables year-round operation in temperate and continental climate conditions.

1. Control range (without repeater): at least 500 m
2. Range with external antenna: up to 3,000 m
3. Range with airborne repeater: up to 10,000 m
4. Platform travel speed: 7–15 km/h
5. Travel range (single battery): at least 50 km
6. Autonomous operation time at 0 °C: at least 4.5 h
7. Number of platforms in system: up to 5 pcs
8. Dust and moisture protection rating: IP65
9. Operating temperature range: −20 to +40 °C
10. Platform (RCM) weight: no more than 80 kg
11. Control unit (RCU) weight: no more than 0.3 kg
12. Kit weight (with one RCM): no more than 84 kg
13. Platform (RCM) dimensions: 850 × 700 × 30 mm
14. RCU screen: color touchscreen, 4.0″
15. Radio channel frequency: 0.86 GHz
