Complex «Trofey–2»

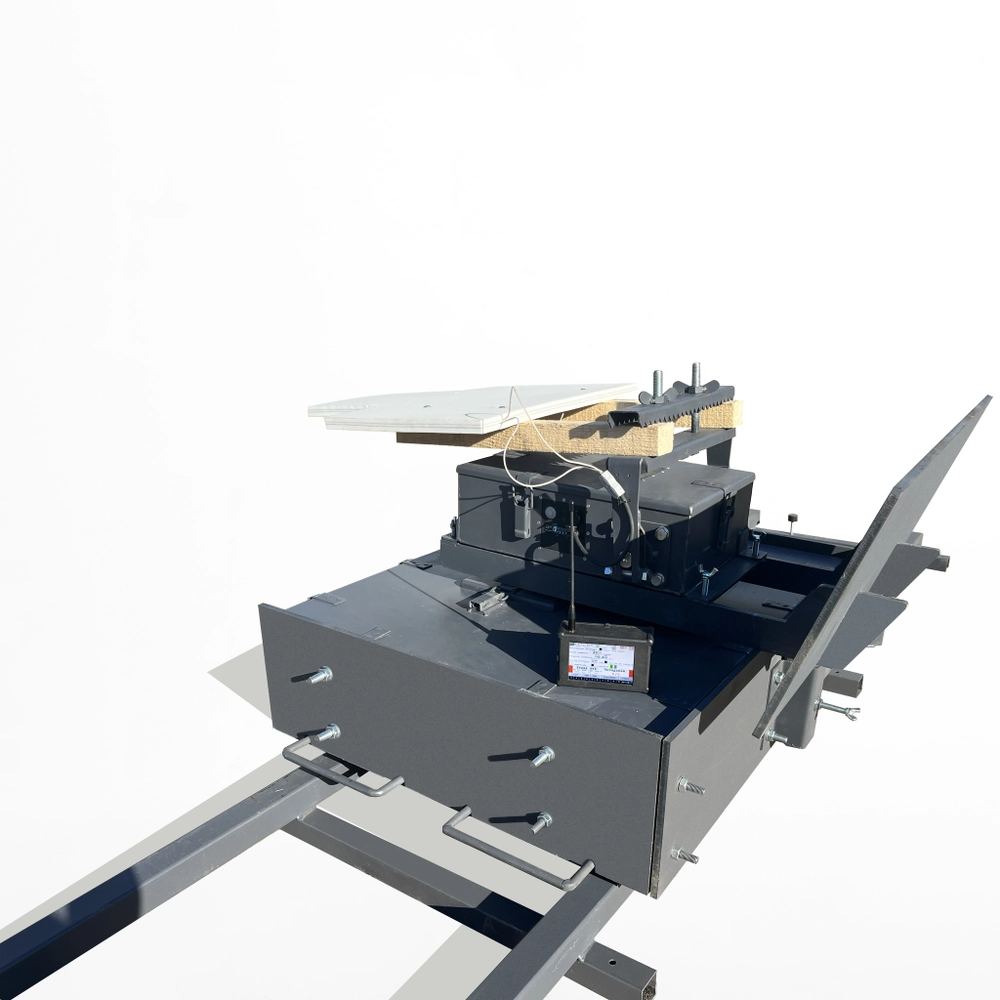

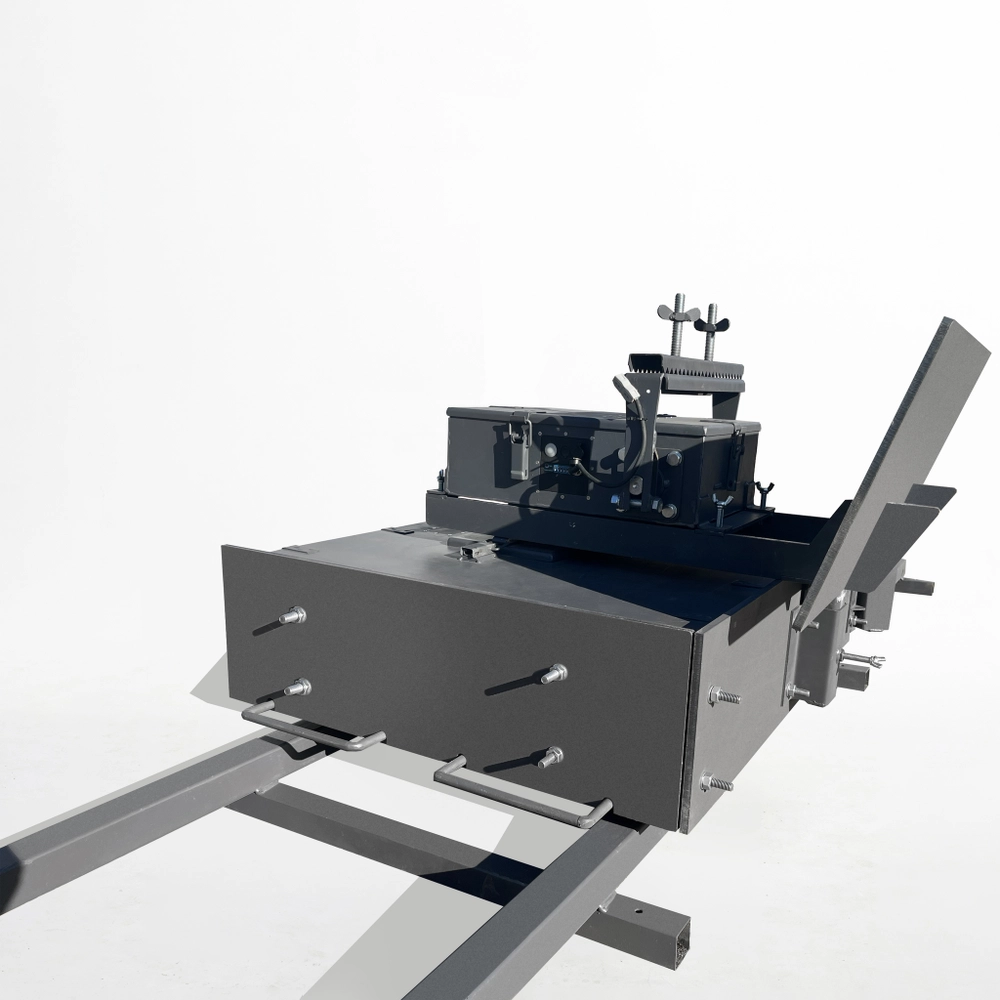

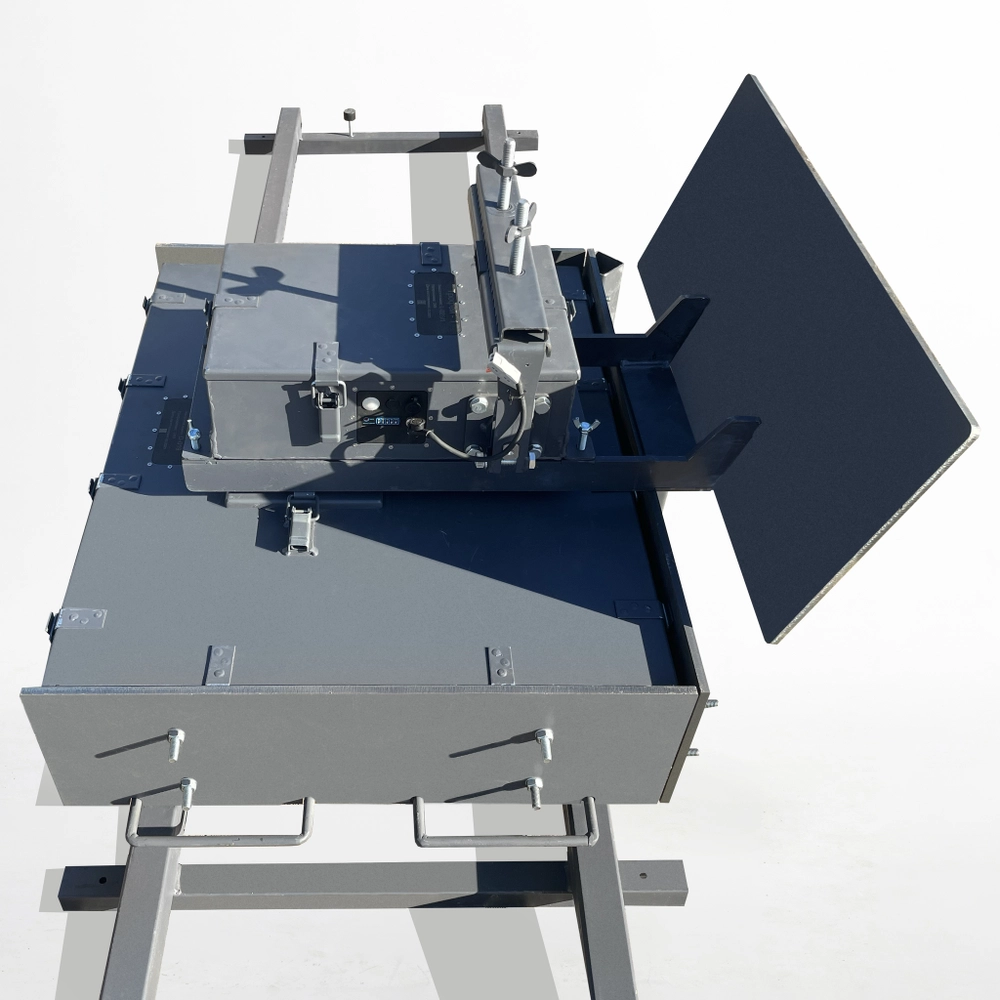

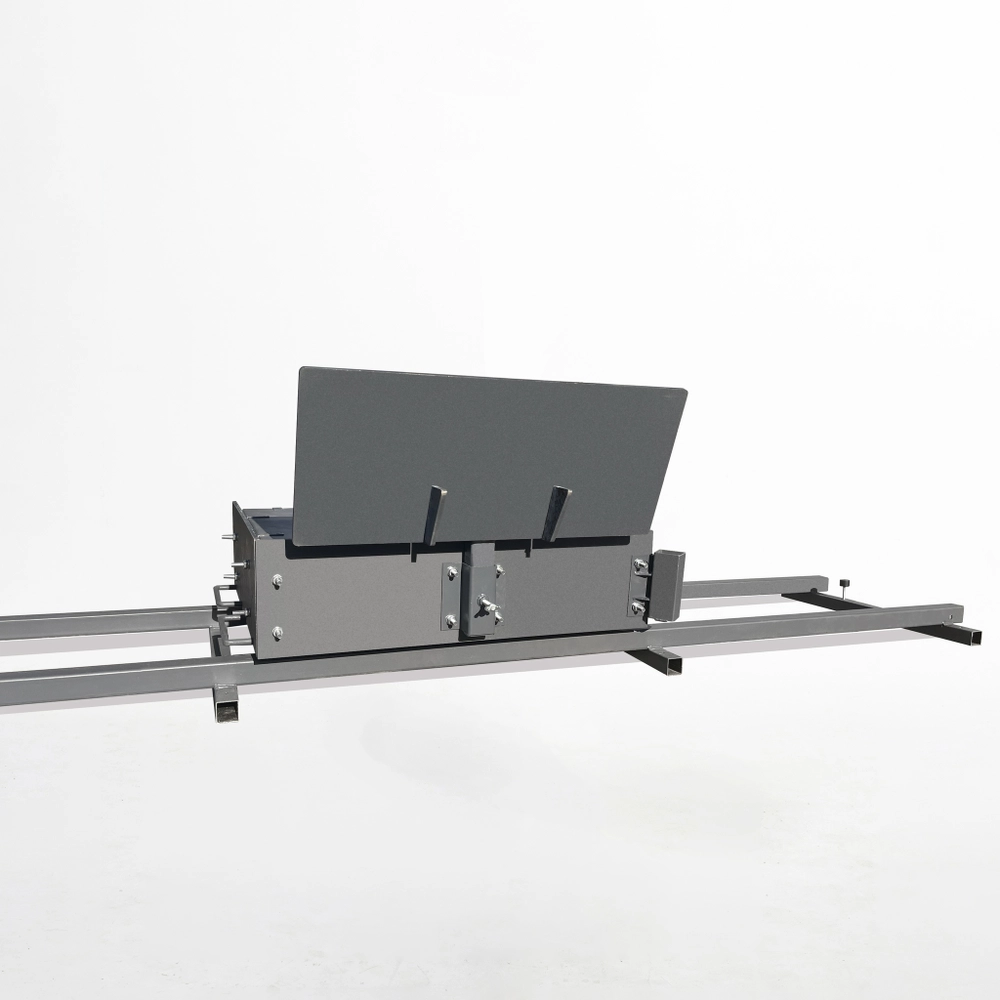

Complex «Trofey–2» is designed for outfitting shooting grounds and ranges with mobile target mount systems featuring automatic shooting result control. The operating principle is based on target movement simulation: a radio-controlled mobile mount (RCM) moves the target along a metal track in a specified direction, at a selected speed, and for a set duration. Movement control is carried out remotely — from a remote control unit (RCU) via radio channel. Hit registration is provided by a vibration module (VM) mounted on the target. Upon engagement, the system registers the hit and transmits data to the operator's control unit. A light module (LM) enables visual target designation during the exercise, including in the infrared spectrum. Training session data is displayed on the RCU screen or an external device and can be saved for subsequent analysis. Upon customer request, the system can be equipped with platform armor protection, specialty metal gong targets, and additional expansion modules.

Complex «Trofey–2» applications

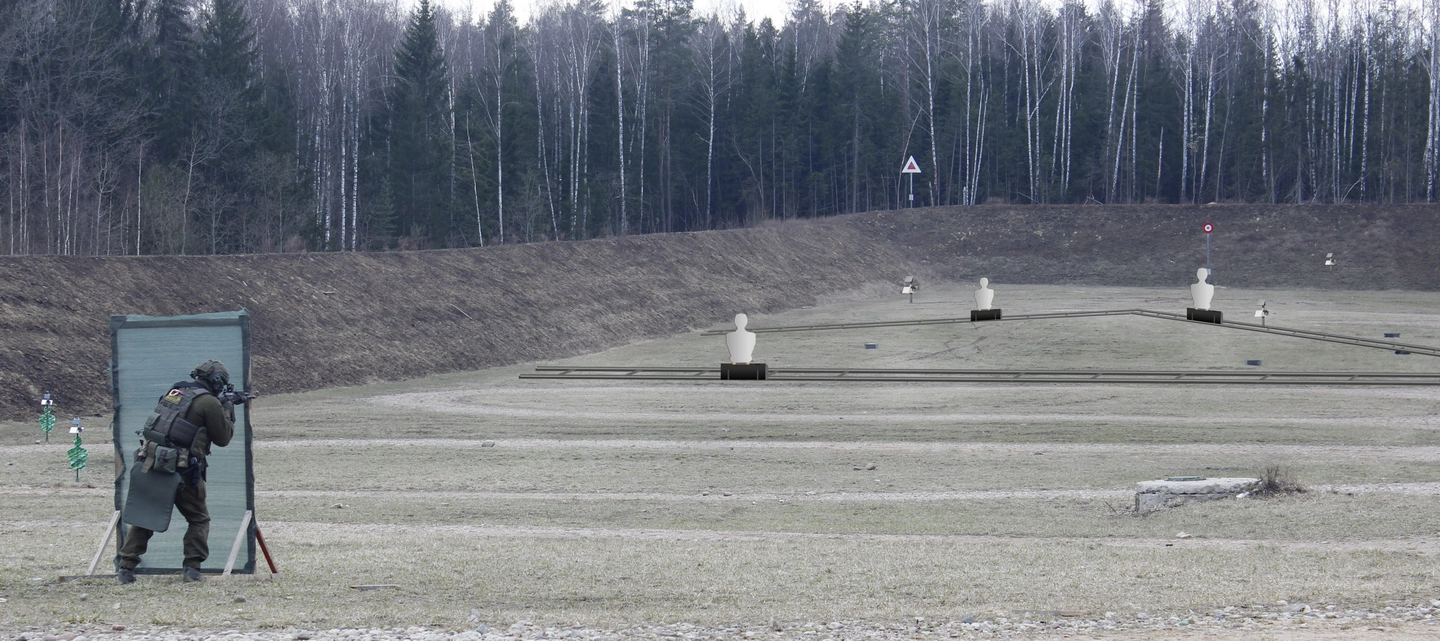

• Firearms training — objective assessment of shooting results against moving targets at distances up to 1,500 m with various weapon types, without interrupting sessions or personnel advancing to the targets.
• Shooting scenario simulation — practicing engagement of single and group targets with variable speed and direction, simulating real-world tactical situations.
• Result monitoring and logging — data transmission to a tablet or personal computer for subsequent evaluation of training metrics.

Complex «Trofey–2» advantages

• Realistic target movement simulation — the platform moves the target at a programmable speed from 0.1 to 5 m/s, changes direction and movement duration — all of which provides conditions maximally approximating real-world scenarios.
• Fully wireless control — no cables between the platform and the control unit: movement control and hit data transmission are carried out via radio channel. The system deploys on any terrain in minimal time.
• Extended operating range — the battery pack provides at least 15 km of travel and 12 hours of continuous operation at 0 °C — sufficient for a full training day without recharging.
• Compatibility with existing equipment — the system supports integration with Trophy-1 target mounts and the Blik system, enabling expansion of capabilities for existing range equipment.

• Operating range: up to 1,500 m
• Platform travel speed: 0.1 – 5 m/s
• Travel range: at least 15 km
• Autonomous operation time (at 0 °C): at least 12 hours
• Number of RCMs in system: up to 5 pcs
• Single RCM weight: no more than 80 kg
• Control unit (RCU) weight: no more than 0.3 kg
• RCM dimensions (L × W × H), mm: 850 × 700 × 30
• Enclosure protection rating: IP65
• Operating temperature: −20 to +40 °C
• Control: RCU or tablet via Bluetooth
• Trophy-1 integration: yes
• Blik system integration: yes

1. Radio-Controlled Mobile Mount — 1 pc

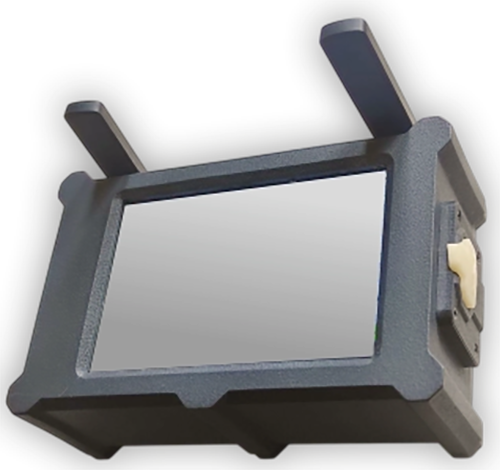

2. Remote Control Unit — 1 pc
3. Light Programmable Module with IR — 1 pc
4. Vibration Programmable Module — 1 pc
5. Metal Track (3-meter section) — up to 30 pcs
6. Tablet* — 1 pc
7. Converter* — 1 pc
8. Armor Protection Kit* — 1 pc

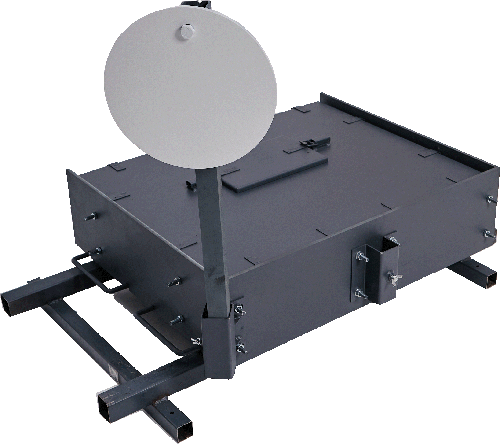

9. Specialty Target — up to 10 pcs
10. Charger — 1 set
11. Storage and Transport Case — 2 pcs
12. Certificate and User Manual — 1 pc

* Supplied upon customer request
